Description

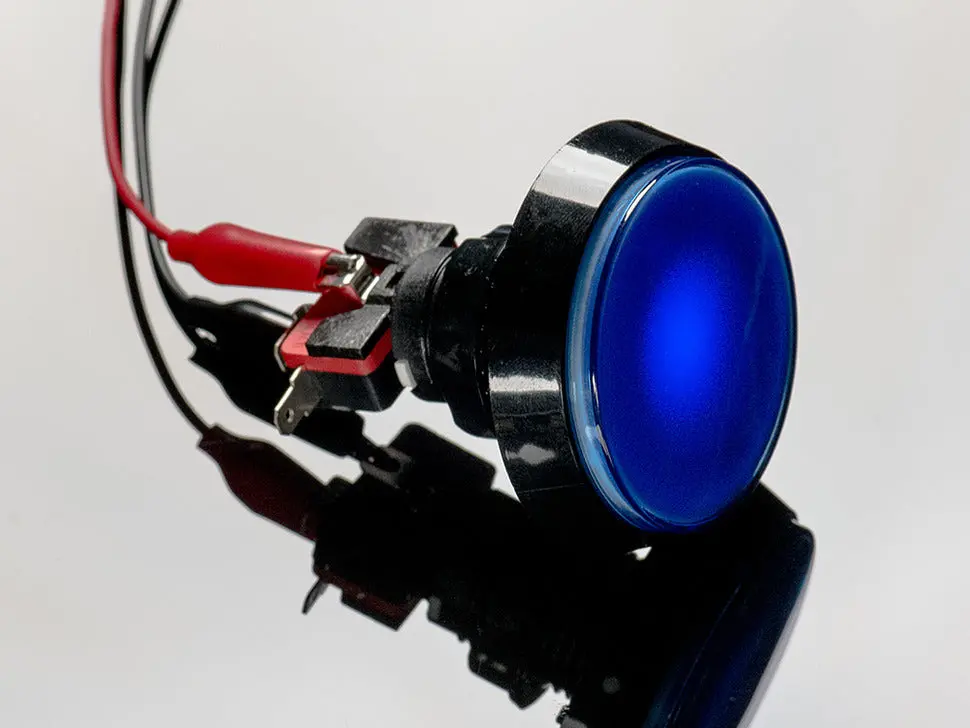

BAM! This 60mm diameter arcade button is large and inviting, perfect for all sorts of pressing and pushing. Commonly seen in arcade games of skill, it’s easy to mount on nearly any enclosure. Note that it’s not waterproof or weatherproof, making it best suited for indoor use.
The button features a flat blue plastic cover with a black retaining ring, and includes an optional LED to illuminate the button. The LED has a built-in resistor allowing operation up to 12V; however, due to the button’s shallow depth, the illumination is not even across the entire face.
It activates a common arcade microswitch (included) with normally open contacts that close when the button is pressed.
Features:
- 60mm diameter large arcade button
- Flat blue plastic cover with black retaining ring
- LED included with built-in resistor supports up to 12V
- Activates a normally open microswitch (included)
- Easy to mount on most enclosures
- Not waterproof or weatherproof – for indoor use only
Technical Details:
- Height when pressed: 12mm / 0.5″
- Height when not pressed: 15.2mm / 0.6″
- Stem length with switch installed: 52.5mm / 2.1″
- Button Diagram
