Description
Beguiled by a fancy new chip that is only available in a SOIC or MSOP/(T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever.

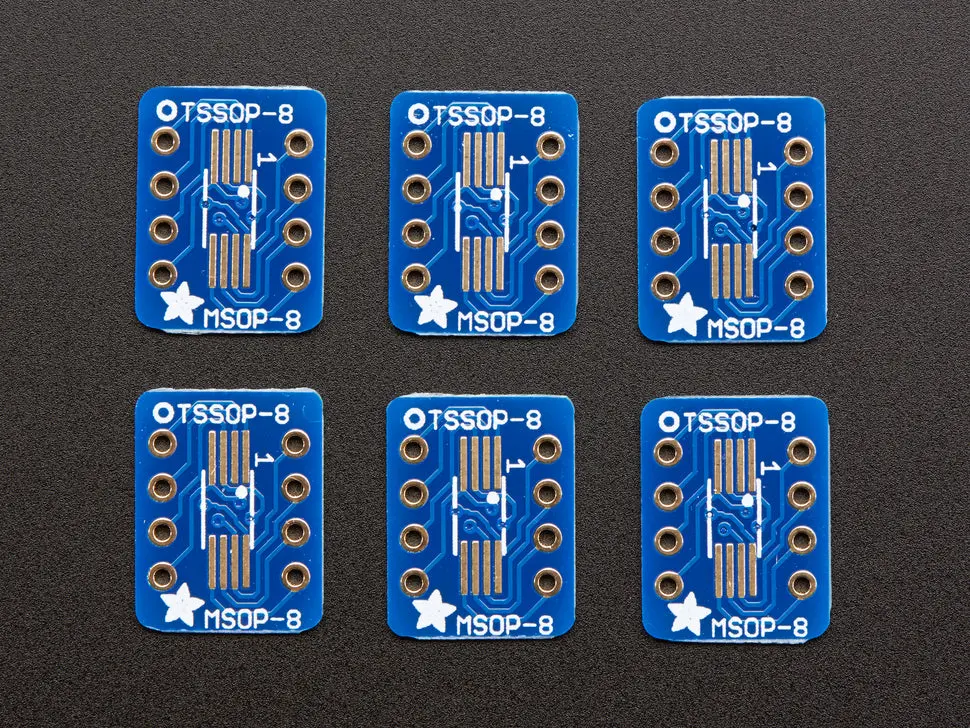

One side has an 8-TSSOP/8-MSOP pinout with traces going to two rows of 0.1″ spaced holes, the other has 8-SOIC. Solder your chip to either side and you’re ready to rock on any solderless breadboard.
Each item comes with six identical PCBs that can support either a SOIC (narrow, medium or wide variety) or TSSOP. These are made on half-thickness PCBs, with 0.3″ spacing between the two rows.
Note: This board does not include headers, but headers are available for purchase separately.
- Six identical breakout PCBs
- Supports SOIC-8 narrow, medium, wide and 8-TSSOP/8-MSOP
- Half-thickness PCB
- 0.3″ spacing between rows
- Perfect for solderless breadboard prototyping
GitHub with CAD files
