Description

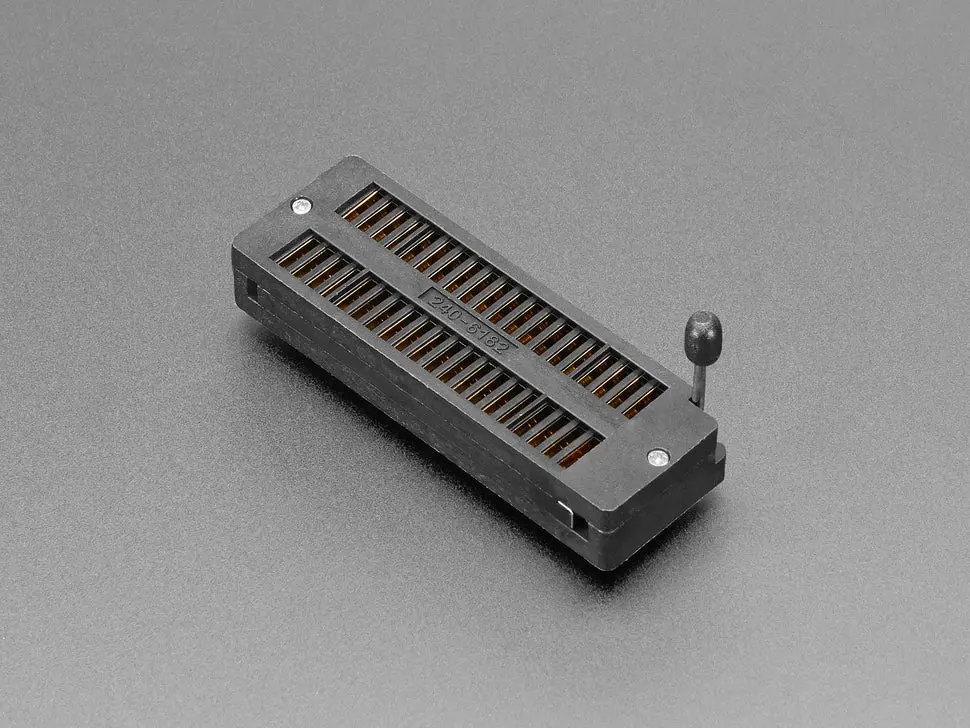

A ZIF (Zero Insertion Force) Socket allows for easy insertion and removal of DIP chips without damaging them. Designed for DIP chips up to 40 pins and 0.6″ wide, the socket includes a lever mechanism to securely latch the chip in place. It’s gold-plated for longevity and fits into existing 40-pin 0.6″ sockets or circuit boards, or can be used directly in breadboards.
- Supports DIP chips up to 40 pins
- Chip width: 0.3″ to 0.6″
- Overall size: 0.9″ x 2.6″ x 0.46″ (23mm x 66mm x 12mm), excluding lever or pins
- Pin pitch: 0.6″ with 2.8mm (0.11″) long pins
- Gold plated for durability
- Fits in breadboards
This socket is ideal for chip programmers or testing chips without damage and can be snapped into compatible circuit boards without redesign.
