Description

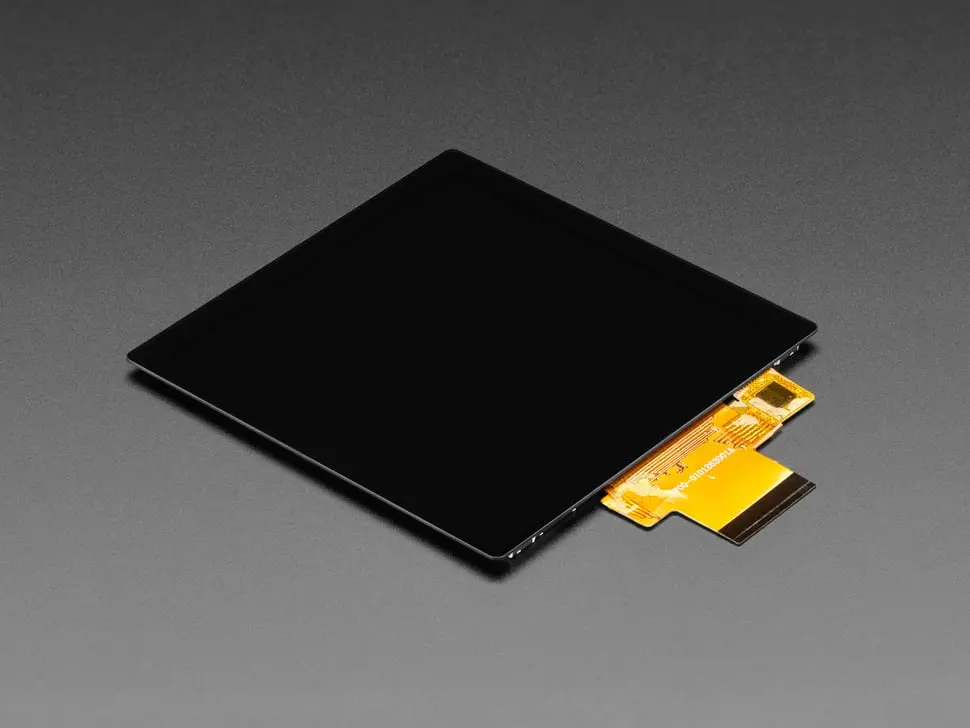

This 4″ square RGB TTL TFT display offers a vibrant 480×480 16-bit full-color IPS screen, delivering excellent color viewing angles up to 80 degrees off-axis. Featuring an ST7701S TFT driver, it accepts TTL RGB ‘dot clock’ input for pixel drawing and SPI solely for display configuration.
Important notes:
- It does not have the same pinout as standard rectangular 800×480 or 480×272 TTL RGB displays despite using a 40-pin connector.
- It requires a powerful microcontroller or computer capable of TTL RGB TFT driving, such as the ESP32-S3 with octal PSRAM or Raspberry Pi with direct-DPI or an intermediary chip like ICN6211.
- This is only the display module; no PCB or driver board included.
- Not compatible with everyday microcontrollers unless they specifically support RGB-666 displays and correct pinout.
For compatible drivers, see the Adafruit Qualia ESP32-S3 for TTL RGB-666 Displays.
Technical details:
- Screen Size: 4″ square
- Resolution: 480×480 pixels
- Color Depth: 16-bit RGB (RGB-666)
- Display Type: IPS TFT
- TFT Driver: ST7701S
- Interface: TTL RGB ‘dot clock’ for pixel data, SPI for configuration only
- Viewing Angle: Great color fidelity up to 80 degrees off-axis
- Connector: 40-pin (non-standard pinout)
Includes: Display module only.
Quantity discounts available:
- 1-9 units: $32.50 each
- 10-99 units: $29.25 each
- 100+ units: $26.00 each
Stock: 29 units available.
For more information, downloadable datasheets, app notes, and init code please refer to the product page.
