Description

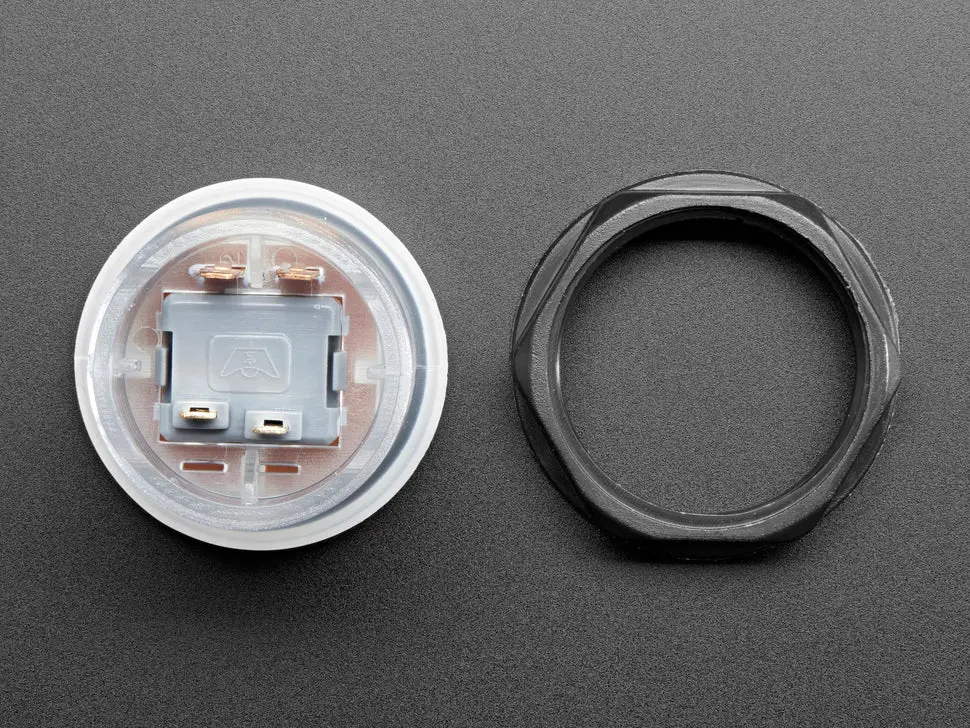

The Arcade Button with LED – 30mm Translucent Clear is a beautifully translucent arcade button with built-in LEDs that create a vibrant wash of light. This button is designed to fit a 30mm diameter hole and can be securely screwed into materials up to approximately 20mm thick. The button features a smooth action with a tactile feel, incorporating a tiny micro-switch with gold plated contacts.
The LEDs are surface-mounted with resistors inside the button body, connected in parallel with a 200-ohm resistor. This design allows the LED to be powered from a microcontroller pin or directly from 5V with a current draw of about 10mA. It can also operate at 3.3V with lower brightness.
This clear translucent button offers a crystal glossy look even when unlit and includes two LED contacts separate from the switch contacts for LED control.
- Button size: 30mm diameter
- Mounting hole size: 30mm diameter
- Mounting thickness: up to ~20mm
- Built-in LEDs with resistors (two LEDs connected in parallel)
- Micro-switch with gold plated contacts
- Supply voltage: 5V @ 10mA (can operate at 3.3V with dimmer light)
- Weight: 14.6g
Perfect for arcade machine projects, DIY controllers, and stylish gaming setups.
