Description

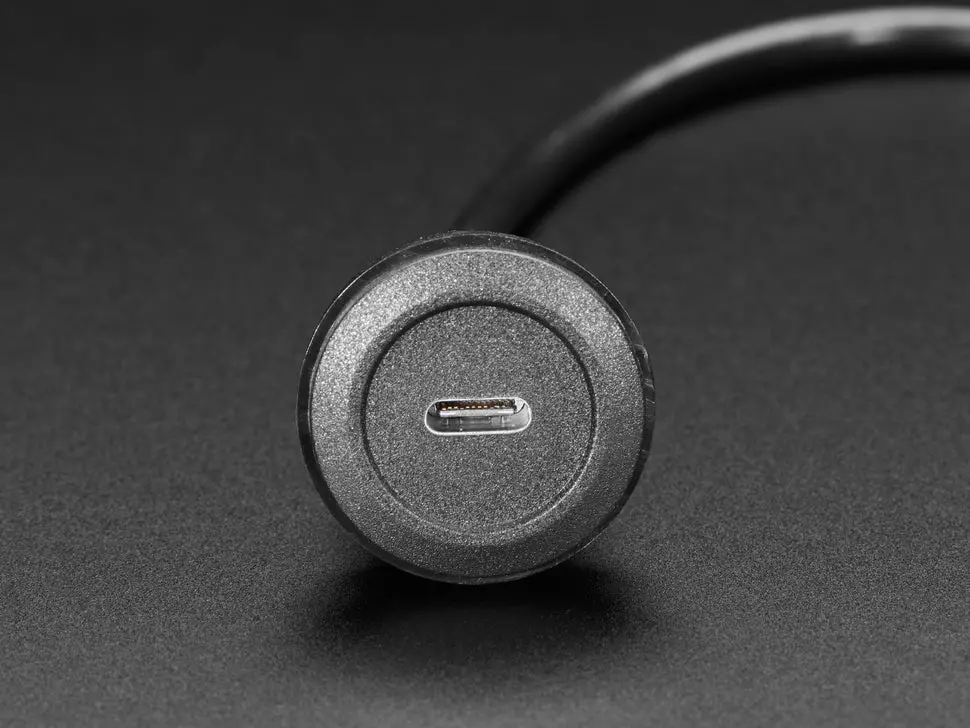

If you need to add a panel-mount connection but don’t have the time or ability to cut a custom oval or square hole, this USB C Round Panel Mount Extension Cable is the easiest and fastest way to panel-ify your project. The adapter fits holes ranging 21.5mm to ~27mm, allowing you to drill into wood, plastic, or metal with a common hole-saw or bit—no special shapes or filing required.
Simply un-screw the plastic nut, insert the plug, and re-attach. Now you have a USB C jack and USB C plug for connecting any cable. It is designed to easily attach to a panel up to 16mm thick (or 0.625″), or as thin as a few millimeters. Perfect for adding a USB C port to your project enclosure!
This cable features a solid body and a forgiving plastic lip that hides the drill hole for a clean finish.
Features:
- Fits drill holes from 21.5mm to approximately 27mm in diameter
- Overall diameter including screw nut: ~29.5mm
- Panel thickness compatibility: up to 16mm (0.625″)
- Provides USB C jack and plug for easy panel mounting
- Solid body design with plastic lip to hide drill hole
- 30 cm cable length
Technical Details:
- Minimum drill diameter: 21.5mm
- Maximum drill diameter: up to 27mm
- Overall diameter (including screw nut): ~29.5mm
- Panel thickness: up to 16mm
Product diagram and specifications (PDF)
