3-Pack SMT Breakout Board for 44-Pin QFN and TQFP ICs

Description

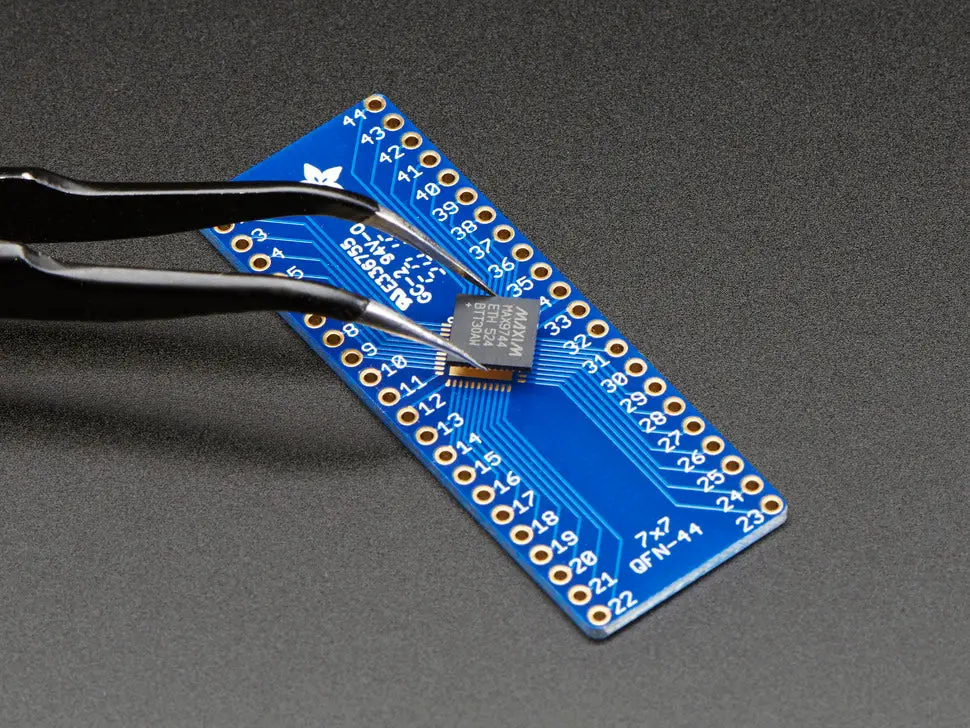

Beguiled by a fancy new chip that is only available in a QFP or QFN pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 44-QFP pin out with traces going to two rows of 0.1″ spaced holes; the other has 44-QFN. Solder your chip to either side and you’re ready to rock on any solderless breadboard.

Each item comes with three PCBs; each PCB is identical and can support either a 10mm square, 0.8mm pitch QFP or 7mm square, 0.5mm pitch QFN chip. Standard thickness PCBs with 0.7″ spacing between the two rows.

Note: Does not include headers, so why don’tcha pick some up?

• Supports 44-QFN chips (7mm square, 0.5mm pitch)
• Supports 44-TQFP chips (10mm square, 0.8mm pitch)
• Three breakout PCBs per pack
• Two rows of 0.1″ spaced holes for easy breadboard or solderless prototyping
• Standard PCB thickness with 0.7″ row spacing
• Ideal for SMT prototyping with QFN and TQFP package chips

Compliant with RoHS 2 2011/65/EU and RoHS 2 2015/863/EU standards.

Learn more about using SMT breakout PCBs in the SMT Breadboard Prototyping Using Breakout PCBs guide.
