Description

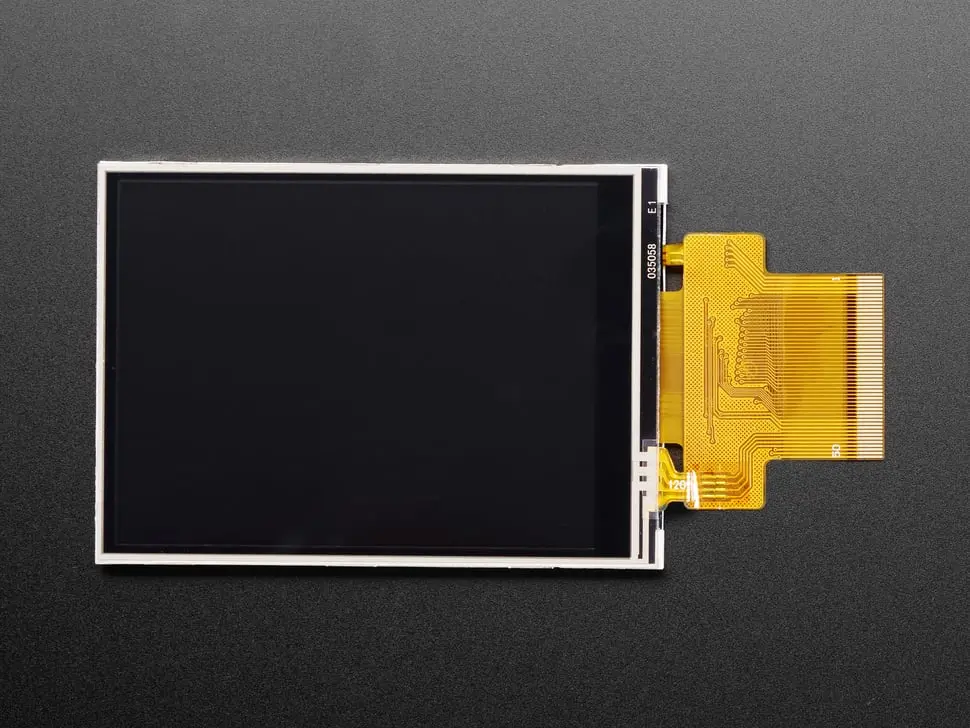

This is a 3.2″ TFT display module featuring a resistive touchscreen and a resolution of 320×240 pixels, driven by the ILI9341 chipset. It is designed for advanced users who want to integrate a high-quality display into their own projects as this is a bare display module without any PCB included.
It supports communication through SPI (4 or 3 wire), 8-bit parallel, and 16-bit parallel interfaces. The display can also be used in a ‘dot clock mode’ for raw TTL input, although no sample code is provided for this mode.
The display requires a 50-pin, 0.5mm pitch, top-contact FPC connector for connection. Note that this connector cannot be soldered directly to a PCB; a matching connector is required.
The resistive touchscreen requires a microcontroller with analog inputs or a dedicated touch screen controller.
Features:
- 320×240 resolution with ILI9341 controller
- Supports SPI (3 or 4 wire), 8-bit, and 16-bit parallel interfaces
- 50-pin 0.5mm pitch top-contact FPC connector needed for connection
- Resistive touchscreen requiring analog input or touch controller
- Dimensions (excluding ribbon connector): 77.8mm x 54.3mm x 3.6mm
- Lightweight at 27.0g
- Complete datasheet and Arduino code examples available
