2×23 Stacking Header Kit for BeagleBone Capes

Description

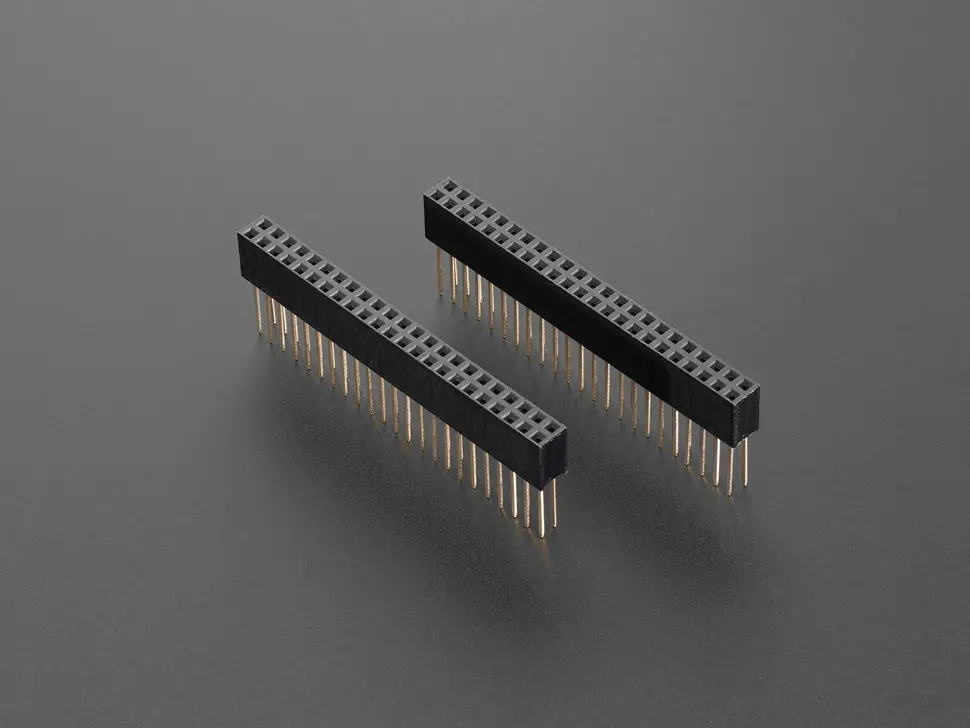

Stack to the max with our Beagle Bone Proto Cape using these ingenious stacking headers. They’re similar to 2×23 0.1″ spaced female headers but with extra-long ‘legs’ so you can solder it through a PCB and plug it into the Bone. You can stack as many as you’d like for modular design.

Each package comes with two pieces of 2×23 header, so you only need one set per Proto Cape kit. Note: The Proto Cape is not included and must be purchased separately. Due to the large number of connections, plugging in is easy but removal requires care; slowly and carefully pry each side up a little bit to avoid bending pins.

Features:

• Two pieces of 2×23 female header
• 0.1″ x 0.1″ grid spacing
• Gold plated contacts for reliable connections
• 8.5 mm long body
• 10.5 mm long legs for stacking capability
