Description

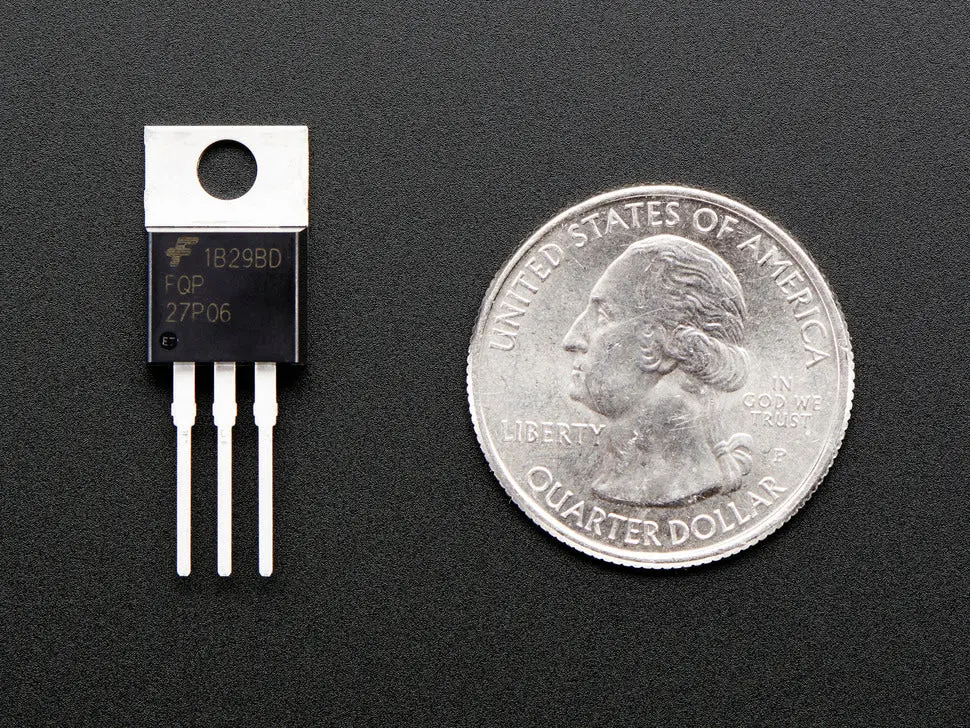

When you need to switch a lot of power, P-channel MOSFETs are best for the job. This P-FET can switch over 60V and 25A (with proper heat-sinking) and comes in a TO-220 package that fits nicely into breadboards or perfboards. The low Rds(on) of down to 70 milliohms depending on Vgs means you might not need a heatsink for high loads.
The TO-220 package can dissipate up to 2 Watts without a heat sink at room temperature. With an Rds of less than 100 milliohms at 5V-12V logic, it can switch about 10 Amperes without a heat sink, or more with PWM control. The threshold voltage is up to 5V for 20A of current, enabling direct control from a 5V microcontroller.
Check out the datasheet for pinout information and more details.
- Drain-Source Breakdown Voltage: -60 V
- Gate-Source Breakdown Voltage: ±25 V
- Continuous Drain Current: 27 A
- Operating Temperature: -55ºC to 175ºC
- Package: TO-220
- Dimensions: Height 28mm (including pins), Width 10mm, Pin Length 13.5mm
- Weight: 2 grams
This product is RoHS 2 compliant.
