24-Pin 0.5mm Pitch FPC Cable – 250mm Flexible A-B/D-Type Assembly

Description

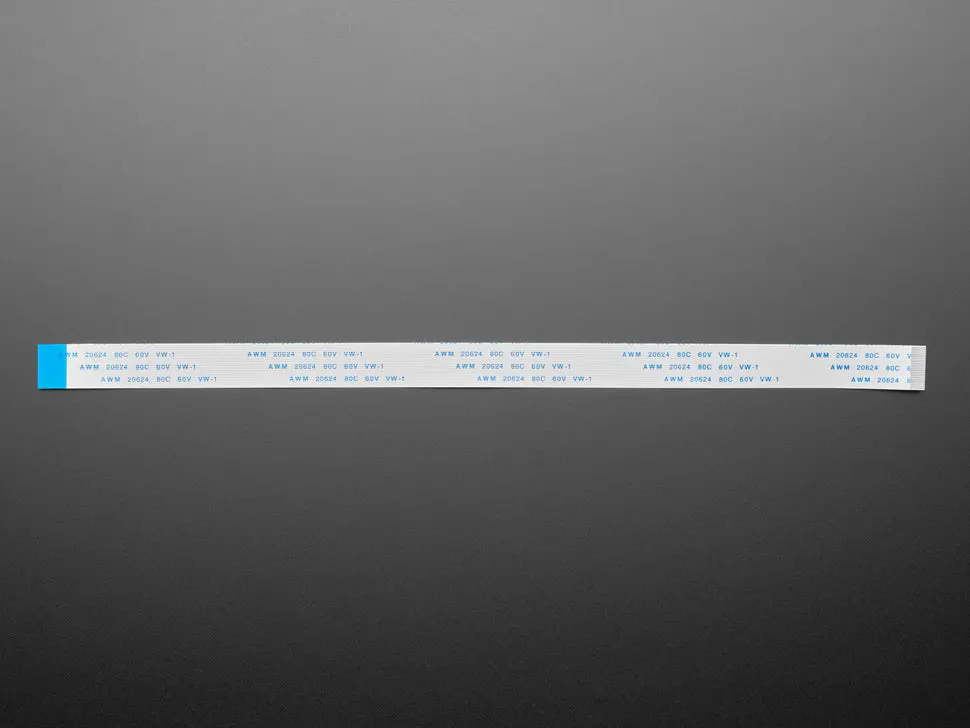

Connect this to that when a 24-pin FPC connector is needed. This 250mm (25cm) long cable is made of flexible PCB. It’s A-B style (sometimes referred to as D style), meaning pin one on one side matches pin one on the other side.

This cable is perfect for e-Ink/e-Paper boards that have ‘flipped’ connectors, but can be used for any application requiring a 0.5mm pitch FPC.

• 24-pin connector
• 0.5mm pitch
• Flexible PCB construction
• A-B (D) style – pin one matches on both sides
• Length: 250mm

Technical Diagram PDF
