Description
One truth about working with audio is you always need the cable or adapter you don’t have in your toolbox. That’s why we love these terminal-block audio connectors so much. No soldering required! Use stranded or solid core wire and a small screwdriver to create custom wiring jigs.

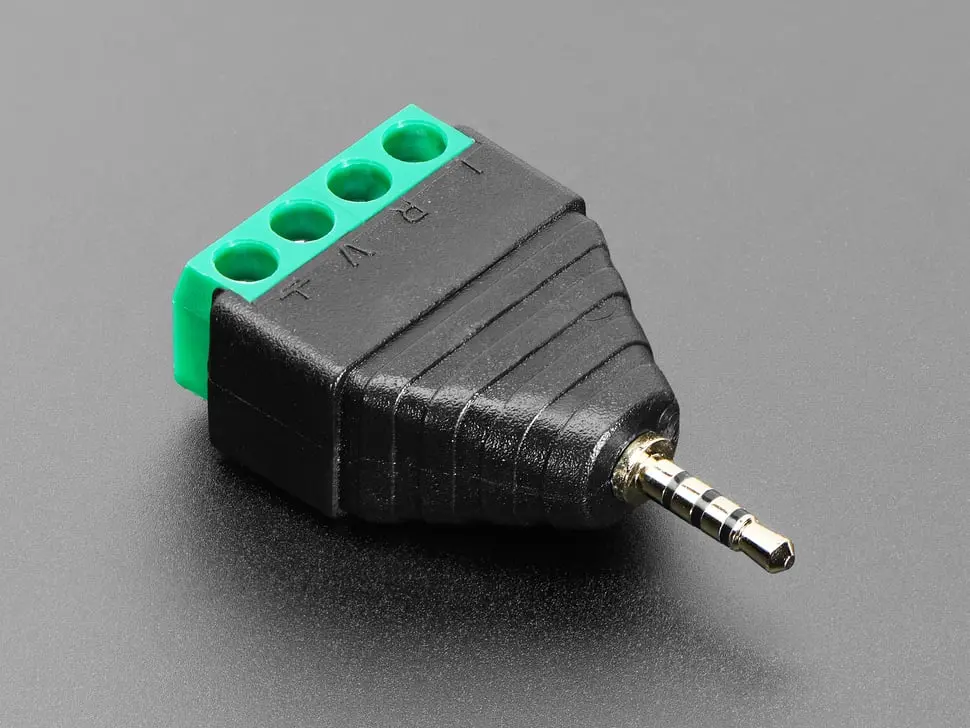

This is the 2.5mm (3/32″) 4-Pole (TRRS) Audio Jack Terminal Block. TRRS stands for Tip, Ring, Ring, Sleeve. It has four total pins – three signal and a ground as opposed to a more common stereo jack’s three. This type of connector is most often used in smartphones & cellphones to provide stereo audio and one mic channel. Note it’s smaller than your classic 3.5mm (1/8″), this is when you think “wow that looks like a 1/8″ jack but its a bit smaller!”
Note that the green block labels it as GND-V-Right-Left which is the most commonly used order. However, it would be more technically correct to just label it Sleeve-Ring-Ring-Tip: goes in the same order as the four contacts on the plug.
- No soldering required
- 4-Pole TRRS audio jack terminal block
- Supports stranded or solid core wire
- Ideal for stereo audio and mic channel connections
- Smaller than standard 3.5mm jack
