Description

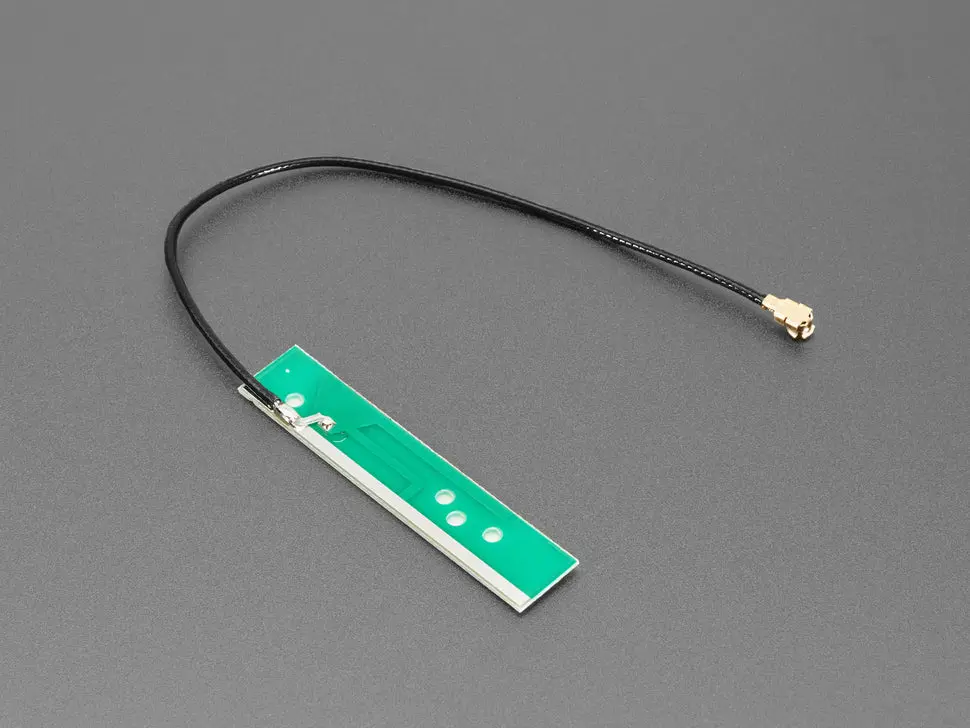

This 4-inch (100mm) long flexible uFL 2.4GHz antenna offers approximately 4dBi gain and a 50Ω impedance, making it compatible with nearly any 2.4-2.5GHz wireless receiver or transmitter, such as the Adafruit CC3000s.
The antenna comes with a uFL (also known as u.FL / IPX / IPEX) connector, so there’s no need for additional adapters to enhance your IoT device’s wireless connectivity.
- Operating Range: 2400~2500MHz / 4900~5900MHz
- Efficiency: 90%
- Bandwidth (VSWR: 2.0 max.): 140 MHz / SWR < 2.0
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Antenna Gain: 4dBi
- Impedance: 50 ohm
- Cable Length: 100mm (4 inches)
- Antenna Size: 40mm x 8mm (1.6″ x 0.3″)
- Weight: 0.7g
