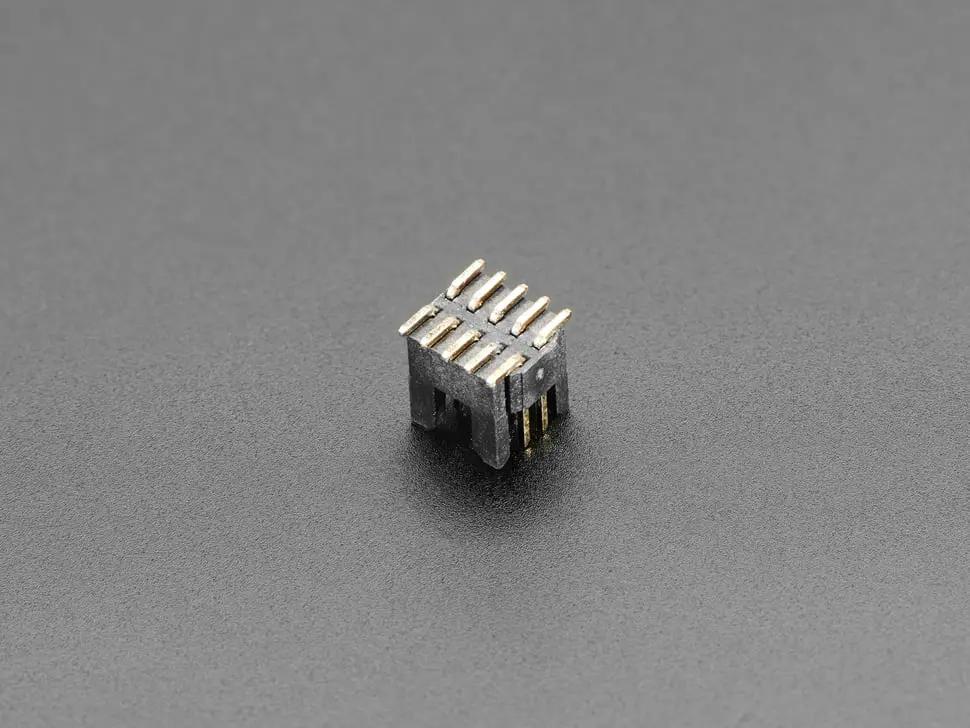

10-Pin 0.05″ SMD Mini SWD Box Header

Description

Introducing the Mini SWD 0.05″ Pitch Connector, a compact 1.27mm pitch 2×5 pin SMT box header. This tinier, bite-sized version of the Box Header is designed to save space on your board with its half-shroud and key-notch design.

This header is ideal for soldering onto your own hardware, especially useful for adding SWD debug/connect capabilities to devices like the nRF52 Feather. The SMT pins can also be straightened for thru-hole soldering if required.

• 1.27mm pitch, 2×5 pin SMT box header
• Half-shroud with key-notch for space-saving and proper orientation
• Compatible with 10-pin 2×5 1.27mm IDC (SWD) cables
• Perfect for programming or debugging ARM Cortex and similar microcontroller boards

The header measures 6.1mm x 6.0mm x 5.0mm and is RoHS compliant.
